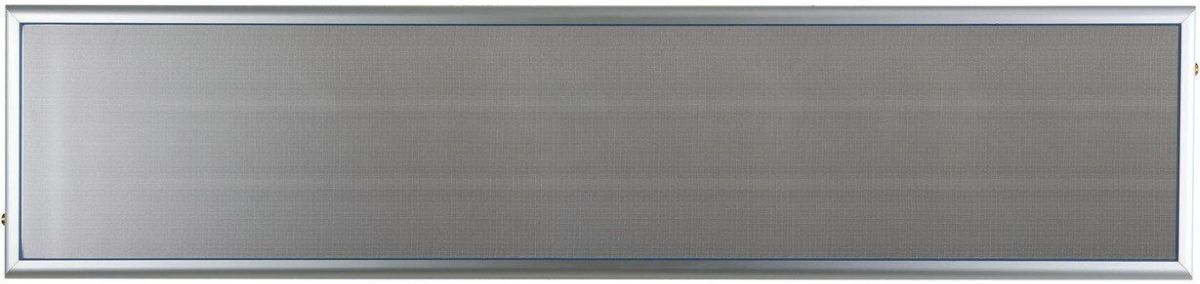

    GE® GeoSpring™ Gray Internal Collector Storage Solar Water Heater

    GE

    Model #:

    GT25C10BAM

    At a Glance

    Storage tank integrated into the solar collector, the tank maintains hot water temperatures even if the sun isn’t shining. The pipes in the tank have a 24-gallon capacity rating, enough to satisfy the needs of the homeRead More

    Sale $2,340.00

    $2,600.00

    Save $260.00

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected
    SyncposQty 0

    Get to know this product.

    Product Overview

    Product Overview

    Serpentine system

    Water is heated and stored directly in the solar collector, making hot water available as soon as it’s heated by the sun

    One-of-a-kind design for versatile installation

    Accommodate any roof style with a unit that’s easy to set up

    Solar glass

    Water is efficiently heated in the integrated storage tank the moment sunlight hits the solar glass

    Innovative frame

    Aluminum profiles and rigid foam insulation at the sides and rear of the solar collector provide total durability

    Internal tank coating

    Resilient internal coating offers maximum corrosion resistance and trouble-free performance

    Clear heat insulation

    Totally transparent insulation delivers maximum heat retention

    Useful Documents
    Owner's Manual and Installation Instructions
    Quick Reference Guide
    Specifications

    General Specs

    Manufacturer Warranty10 Year
    Capacity (gal.)24
    Color Finish NameGray
    ADA CompliantNo
    Smart CompatibleNo
    Wifi CapableNo
    CollectionGeoSpring™
    Product Weight (lbs.)77

    Features

    ConfigurationICS
    Product TypeSolar
    Cold/hot water connections (inches)3/4 MNPT
    Collector Inclination Angle from horizontal (degrees)10 to 75
    Gross area (ft)12
    Heat transfer mediumWater
    Max. operating pressure (psi)60
    Net Collector Area (ft²)10
    Thermal insulation - storage tank (inches)1.2
    Volume hot water storage tank (gal)24

    Weight and Dimensions

    Collector outer dimensions (inches)86x20x8
    Max height, mount 45/30 (inches)19/17
    Weight (with mount, no water) (lb)83
    Weight (with mount, with water) (lb)281
